RDKit::AtomRingQuery Class Reference

#include <QueryOps.h>

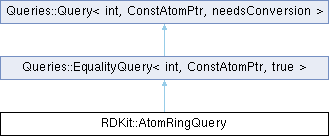

Inheritance diagram for RDKit::AtomRingQuery:
Queries::EqualityQuery< int, ConstAtomPtr, true > Queries::Query< MatchFuncArgType, DataFuncArgType, needsConversion >

Public Member Functions

 AtomRingQuery ()

 AtomRingQuery (int v)

bool Match (const ConstAtomPtr what) const override

Queries::Query< int, ConstAtomPtr, true > * copy () const override
 returns a copy of this query

- Public Member Functions inherited from Queries::EqualityQuery< int, ConstAtomPtr, true >
 EqualityQuery ()

 EqualityQuery (int v)
 constructs with our target value

 EqualityQuery (int v, int t)
 constructs with our target value and a tolerance

void setVal (int what)
 sets our target value

const int getVal () const
 returns our target value

void setTol (int what)
 sets our tolerance

const int getTol () const
 returns out tolerance

bool Match (const ConstAtomPtr what) const override
 returns whether or not we match the argument

Query< int, ConstAtomPtr, needsConversion > * copy () const override
 returns a copy of this Query

std::string getFullDescription () const override
 returns a fuller text description

- Public Member Functions inherited from Queries::Query< MatchFuncArgType, DataFuncArgType, needsConversion >
 Query ()

virtual ~Query ()

void setNegation (bool what)
 sets whether or not we are negated

bool getNegation () const
 returns whether or not we are negated

void setDescription (const std::string &descr)
 sets our text description

void setDescription (const char *descr)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

const std::string & getDescription () const
 returns our text description

void setTypeLabel (const std::string &typ)
 sets our type label

void setTypeLabel (const char *typ)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

const std::string & getTypeLabel () const
 returns our text label.

void setMatchFunc (bool(*what)(MatchFuncArgType))
 sets our match function

void setDataFunc (MatchFuncArgType(*what)(DataFuncArgType))
 sets our data function

void addChild (CHILD_TYPE child)
 adds a child to our list of children

CHILD_VECT_CI beginChildren () const
 returns an iterator for the beginning of our child vector

CHILD_VECT_CI endChildren () const
 returns an iterator for the end of our child vector

virtual bool Match (const DataFuncArgType arg) const
 returns whether or not we match the argument


Additional Inherited Members

- Public Types inherited from Queries::Query< MatchFuncArgType, DataFuncArgType, needsConversion >
using CHILD_TYPE = std::shared_ptr< Query< MatchFuncArgType, DataFuncArgType, needsConversion > >

using CHILD_VECT = std::vector< CHILD_TYPE >

using CHILD_VECT_I = typename CHILD_VECT::iterator

using CHILD_VECT_CI = typename CHILD_VECT::const_iterator

using MATCH_FUNC_ARG_TYPE = MatchFuncArgType

using DATA_FUNC_ARG_TYPE = DataFuncArgType

- Public Attributes inherited from Queries::Query< MatchFuncArgType, DataFuncArgType, needsConversion >
bool(*)(MatchFuncArgType) getMatchFunc () const
 returns our match function:

MatchFuncArgType(*)(DataFuncArgType) getDataFunc () const
 returns our data function:

- Protected Member Functions inherited from Queries::Query< MatchFuncArgType, DataFuncArgType, needsConversion >
MatchFuncArgType TypeConvert (MatchFuncArgType what, Int2Type< false >) const
 calls our dataFunc (if it's set) on what and returns the result, otherwise returns what

MatchFuncArgType TypeConvert (DataFuncArgType what, Int2Type< true >) const

- Protected Attributes inherited from Queries::Query< MatchFuncArgType, DataFuncArgType, needsConversion >
MatchFuncArgType d_val = 0

MatchFuncArgType d_tol = 0

std::string d_description = ""

std::string d_queryType = ""

CHILD_VECT d_children

bool df_negate {false}

bool(* d_matchFunc )(MatchFuncArgType)

union {

   MatchFuncArgType(*   d_dataFunc )(DataFuncArgType)

   MatchFuncArgType(*   d_dataFuncSameType )(MatchFuncArgType)

};


Detailed Description

Definition at line 707 of file QueryOps.h.

Constructor & Destructor Documentation

◆ AtomRingQuery() [1/2]

RDKit::AtomRingQuery::AtomRingQuery ( )
inline

Definition at line 710 of file QueryOps.h.

References RDKit::queryAtomRingMembership().

◆ AtomRingQuery() [2/2]

RDKit::AtomRingQuery::AtomRingQuery ( int  v)
inlineexplicit

Definition at line 715 of file QueryOps.h.

References RDKit::queryAtomRingMembership().

Member Function Documentation

◆ copy()

◆ Match()

bool RDKit::AtomRingQuery::Match ( const ConstAtomPtr  what) const
inlineoverride

Definition at line 722 of file QueryOps.h.

References Queries::queryCmp().


The documentation for this class was generated from the following file:
