RDKit::MolDraw2D_detail::DrawText Class Referenceabstract

#include <DrawText.h>

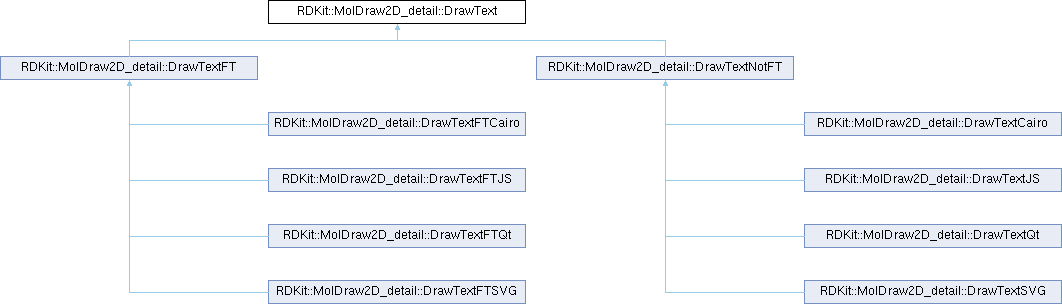

Inheritance diagram for RDKit::MolDraw2D_detail::DrawText:
RDKit::MolDraw2D_detail::DrawTextFT RDKit::MolDraw2D_detail::DrawTextNotFT RDKit::MolDraw2D_detail::DrawTextFTCairo RDKit::MolDraw2D_detail::DrawTextFTJS RDKit::MolDraw2D_detail::DrawTextFTQt RDKit::MolDraw2D_detail::DrawTextFTSVG RDKit::MolDraw2D_detail::DrawTextCairo RDKit::MolDraw2D_detail::DrawTextJS RDKit::MolDraw2D_detail::DrawTextQt RDKit::MolDraw2D_detail::DrawTextSVG

Public Member Functions

virtual ~DrawText ()=0

 DrawText (double max_fnt_sz, double min_fnt_sz)

 DrawText (const DrawText &)=delete

 DrawText (DrawText &&)=delete

DrawText & operator= (const DrawText &)=delete

DrawText & operator= (DrawText &&)=delete

DrawColour const & colour () const

void setColour (const DrawColour &col)

double fontSize () const

void setFontSize (double new_size)

double baseFontSize () const

void setBaseFontSize (double new_size)

double maxFontSize () const

void setMaxFontSize (double new_max)

double minFontSize () const

void setMinFontSize (double new_max)

double fontScale () const

bool setFontScale (double new_scale, bool ignoreLimits=false)

virtual std::string getFontFile () const

virtual void setFontFile (const std::string &font_file)

virtual void getStringSize (const std::string &label, double &label_width, double &label_height) const
 using the current scale, work out the size of the label

void getStringExtremes (const std::string &label, OrientType orient, double &x_min, double &y_min, double &x_max, double &y_max, bool dontSplit=false) const

void getStringRects (const std::string &text, OrientType orient, std::vector< std::shared_ptr< StringRect > > &rects, std::vector< TextDrawType > &draw_modes, std::vector< char > &draw_chars, bool dontSplit=false, TextAlignType textAlign=TextAlignType::MIDDLE) const

virtual void drawString (const std::string &str, const Point2D &cds, TextAlignType align)
 drawString centres the string on cds.

void drawString (const std::string &label, const Point2D &cds, OrientType orient)

void adjustLineForString (const std::string &label, OrientType orient, const Point2D &end1, Point2D &end2) const

virtual void drawChar (char c, const Point2D &cds)=0

void drawStringRects (const std::string &label, OrientType orient, TextAlignType talign, const Point2D &cds, MolDraw2D &mol_draw) const

bool doesRectIntersect (const std::string &label, OrientType orient, const Point2D &cds, const StringRect &rect) const

bool doesRectIntersect (const std::vector< std::shared_ptr< StringRect > > &rects, const Point2D &cds, const StringRect &rect) const

bool doesLineIntersect (const std::string &label, OrientType orient, const Point2D &cds, const Point2D &end1, const Point2D &end2, double padding) const

bool doesLineIntersect (const std::vector< std::shared_ptr< StringRect > > &rects, const Point2D &cds, const Point2D &end1, const Point2D &end2, double padding) const

bool doesStringIntersect (const std::vector< std::shared_ptr< StringRect > > &rects, const Point2D &cds1, const std::string &label2, OrientType orient2, const Point2D &cds2) const

bool doesStringIntersect (const std::string &label1, OrientType orient1, const Point2D &cds1, const std::string &label2, OrientType orient2, const Point2D &cds2) const

virtual void alignString (TextAlignType align, const std::vector< TextDrawType > &draw_modes, std::vector< std::shared_ptr< StringRect > > &rects) const

void adjustStringRectsForSuperSubScript (const std::vector< TextDrawType > &draw_modes, std::vector< std::shared_ptr< StringRect > > &rects) const

double selectScaleFactor (char c, TextDrawType draw_type) const

virtual void getStringRects (const std::string &text, std::vector< std::shared_ptr< StringRect > > &rects, std::vector< TextDrawType > &draw_modes, std::vector< char > &draw_chars) const =0

void drawChars (const Point2D &a_cds, const std::vector< std::shared_ptr< StringRect > > &rects, const std::vector< TextDrawType > &draw_modes, const std::vector< char > &draw_chars)


Public Attributes

DrawColour colour_

double font_scale_

double max_font_size_

double min_font_size_

double base_font_size_ = DEFAULT_FONT_SCALE


Static Public Attributes

static constexpr double DEFAULT_FONT_SCALE

static constexpr double SUBS_SCALE = 0.66

static constexpr double SUPER_SCALE = 0.66


Detailed Description

Definition at line 46 of file DrawText.h.

Constructor & Destructor Documentation

◆ ~DrawText()

virtual RDKit::MolDraw2D_detail::DrawText::~DrawText ( )
pure virtual

◆ DrawText() [1/3]

RDKit::MolDraw2D_detail::DrawText::DrawText ( double max_fnt_sz,
double min_fnt_sz )

Referenced by DrawText(), DrawText(), operator=(), and operator=().

◆ DrawText() [2/3]

RDKit::MolDraw2D_detail::DrawText::DrawText ( const DrawText & )
delete

References DrawText().

◆ DrawText() [3/3]

RDKit::MolDraw2D_detail::DrawText::DrawText ( DrawText && )
delete

References DrawText().

Member Function Documentation

◆ adjustLineForString()

void RDKit::MolDraw2D_detail::DrawText::adjustLineForString ( const std::string & label,
OrientType orient,
const Point2D & end1,
Point2D & end2 ) const

◆ adjustStringRectsForSuperSubScript()

void RDKit::MolDraw2D_detail::DrawText::adjustStringRectsForSuperSubScript ( const std::vector< TextDrawType > & draw_modes,
std::vector< std::shared_ptr< StringRect > > & rects ) const

◆ alignString()

virtual void RDKit::MolDraw2D_detail::DrawText::alignString ( TextAlignType align,
const std::vector< TextDrawType > & draw_modes,
std::vector< std::shared_ptr< StringRect > > & rects ) const
virtual

Reimplemented in RDKit::MolDraw2D_detail::DrawTextNotFT.

◆ baseFontSize()

double RDKit::MolDraw2D_detail::DrawText::baseFontSize ( ) const

◆ colour()

DrawColour const & RDKit::MolDraw2D_detail::DrawText::colour ( ) const

◆ doesLineIntersect() [1/2]

bool RDKit::MolDraw2D_detail::DrawText::doesLineIntersect ( const std::string & label,
OrientType orient,
const Point2D & cds,
const Point2D & end1,
const Point2D & end2,
double padding ) const

◆ doesLineIntersect() [2/2]

bool RDKit::MolDraw2D_detail::DrawText::doesLineIntersect ( const std::vector< std::shared_ptr< StringRect > > & rects,
const Point2D & cds,
const Point2D & end1,
const Point2D & end2,
double padding ) const

◆ doesRectIntersect() [1/2]

bool RDKit::MolDraw2D_detail::DrawText::doesRectIntersect ( const std::string & label,
OrientType orient,
const Point2D & cds,
const StringRect & rect ) const

◆ doesRectIntersect() [2/2]

bool RDKit::MolDraw2D_detail::DrawText::doesRectIntersect ( const std::vector< std::shared_ptr< StringRect > > & rects,
const Point2D & cds,
const StringRect & rect ) const

◆ doesStringIntersect() [1/2]

bool RDKit::MolDraw2D_detail::DrawText::doesStringIntersect ( const std::string & label1,
OrientType orient1,
const Point2D & cds1,
const std::string & label2,
OrientType orient2,
const Point2D & cds2 ) const

◆ doesStringIntersect() [2/2]

bool RDKit::MolDraw2D_detail::DrawText::doesStringIntersect ( const std::vector< std::shared_ptr< StringRect > > & rects,
const Point2D & cds1,
const std::string & label2,
OrientType orient2,
const Point2D & cds2 ) const

◆ drawChar()

virtual void RDKit::MolDraw2D_detail::DrawText::drawChar ( char c,
const Point2D & cds )
pure virtual

Implemented in RDKit::MolDraw2D_detail::DrawTextCairo, RDKit::MolDraw2D_detail::DrawTextFT, RDKit::MolDraw2D_detail::DrawTextJS, RDKit::MolDraw2D_detail::DrawTextQt, and RDKit::MolDraw2D_detail::DrawTextSVG.

◆ drawChars()

void RDKit::MolDraw2D_detail::DrawText::drawChars ( const Point2D & a_cds,
const std::vector< std::shared_ptr< StringRect > > & rects,
const std::vector< TextDrawType > & draw_modes,
const std::vector< char > & draw_chars )

◆ drawString() [1/2]

void RDKit::MolDraw2D_detail::DrawText::drawString ( const std::string & label,
const Point2D & cds,
OrientType orient )

◆ drawString() [2/2]

virtual void RDKit::MolDraw2D_detail::DrawText::drawString ( const std::string & str,
const Point2D & cds,
TextAlignType align )
virtual

drawString centres the string on cds.

◆ drawStringRects()

void RDKit::MolDraw2D_detail::DrawText::drawStringRects ( const std::string & label,
OrientType orient,
TextAlignType talign,
const Point2D & cds,
MolDraw2D & mol_draw ) const

◆ fontScale()

double RDKit::MolDraw2D_detail::DrawText::fontScale ( ) const

◆ fontSize()

double RDKit::MolDraw2D_detail::DrawText::fontSize ( ) const

◆ getFontFile()

virtual std::string RDKit::MolDraw2D_detail::DrawText::getFontFile ( ) const
inlinevirtual

Reimplemented in RDKit::MolDraw2D_detail::DrawTextFT.

Definition at line 77 of file DrawText.h.

◆ getStringExtremes()

void RDKit::MolDraw2D_detail::DrawText::getStringExtremes ( const std::string & label,
OrientType orient,
double & x_min,
double & y_min,
double & x_max,
double & y_max,
bool dontSplit = false ) const

◆ getStringRects() [1/2]

void RDKit::MolDraw2D_detail::DrawText::getStringRects ( const std::string & text,
OrientType orient,
std::vector< std::shared_ptr< StringRect > > & rects,
std::vector< TextDrawType > & draw_modes,
std::vector< char > & draw_chars,
bool dontSplit = false,
TextAlignType textAlign = TextAlignType::MIDDLE ) const

References RDKit::MolDraw2D_detail::MIDDLE.

◆ getStringRects() [2/2]

virtual void RDKit::MolDraw2D_detail::DrawText::getStringRects ( const std::string & text,
std::vector< std::shared_ptr< StringRect > > & rects,
std::vector< TextDrawType > & draw_modes,
std::vector< char > & draw_chars ) const
pure virtual

Implemented in RDKit::MolDraw2D_detail::DrawTextFT, RDKit::MolDraw2D_detail::DrawTextJS, and RDKit::MolDraw2D_detail::DrawTextSVG.

◆ getStringSize()

virtual void RDKit::MolDraw2D_detail::DrawText::getStringSize ( const std::string & label,
double & label_width,
double & label_height ) const
virtual

using the current scale, work out the size of the label

Bear in mind when implementing this, that, for example, NH2 will appear as NH2 to convey that the 2 is a subscript, and this needs to be accounted for in the width and height.

◆ maxFontSize()

double RDKit::MolDraw2D_detail::DrawText::maxFontSize ( ) const

◆ minFontSize()

double RDKit::MolDraw2D_detail::DrawText::minFontSize ( ) const

◆ operator=() [1/2]

DrawText & RDKit::MolDraw2D_detail::DrawText::operator= ( const DrawText & )
delete

References DrawText().

◆ operator=() [2/2]

DrawText & RDKit::MolDraw2D_detail::DrawText::operator= ( DrawText && )
delete

References DrawText().

◆ selectScaleFactor()

double RDKit::MolDraw2D_detail::DrawText::selectScaleFactor ( char c,
TextDrawType draw_type ) const

◆ setBaseFontSize()

void RDKit::MolDraw2D_detail::DrawText::setBaseFontSize ( double new_size)

◆ setColour()

void RDKit::MolDraw2D_detail::DrawText::setColour ( const DrawColour & col)

◆ setFontFile()

virtual void RDKit::MolDraw2D_detail::DrawText::setFontFile ( const std::string & font_file)
inlinevirtual

Reimplemented in RDKit::MolDraw2D_detail::DrawTextFT.

Definition at line 78 of file DrawText.h.

References RDUNUSED_PARAM.

◆ setFontScale()

bool RDKit::MolDraw2D_detail::DrawText::setFontScale ( double new_scale,
bool ignoreLimits = false )

◆ setFontSize()

void RDKit::MolDraw2D_detail::DrawText::setFontSize ( double new_size)

◆ setMaxFontSize()

void RDKit::MolDraw2D_detail::DrawText::setMaxFontSize ( double new_max)

◆ setMinFontSize()

void RDKit::MolDraw2D_detail::DrawText::setMinFontSize ( double new_max)

Member Data Documentation

◆ base_font_size_

double RDKit::MolDraw2D_detail::DrawText::base_font_size_ = DEFAULT_FONT_SCALE

Definition at line 173 of file DrawText.h.

◆ colour_

DrawColour RDKit::MolDraw2D_detail::DrawText::colour_

Definition at line 169 of file DrawText.h.

◆ DEFAULT_FONT_SCALE

double RDKit::MolDraw2D_detail::DrawText::DEFAULT_FONT_SCALE
staticconstexpr
Initial value:
=
0.6

Definition at line 50 of file DrawText.h.

◆ font_scale_

double RDKit::MolDraw2D_detail::DrawText::font_scale_

Definition at line 170 of file DrawText.h.

◆ max_font_size_

double RDKit::MolDraw2D_detail::DrawText::max_font_size_

Definition at line 171 of file DrawText.h.

◆ min_font_size_

double RDKit::MolDraw2D_detail::DrawText::min_font_size_

Definition at line 172 of file DrawText.h.

◆ SUBS_SCALE

double RDKit::MolDraw2D_detail::DrawText::SUBS_SCALE = 0.66
staticconstexpr

Definition at line 166 of file DrawText.h.

◆ SUPER_SCALE

double RDKit::MolDraw2D_detail::DrawText::SUPER_SCALE = 0.66
staticconstexpr

Definition at line 167 of file DrawText.h.

The documentation for this class was generated from the following file:
