RDKit::MolDraw2D_detail::DrawMolMCH Class Referenceabstract

#include <DrawMolMCH.h>

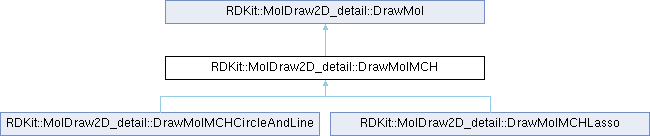

Inheritance diagram for RDKit::MolDraw2D_detail::DrawMolMCH:
RDKit::MolDraw2D_detail::DrawMol RDKit::MolDraw2D_detail::DrawMolMCHCircleAndLine RDKit::MolDraw2D_detail::DrawMolMCHLasso

Public Member Functions

 DrawMolMCH (const ROMol &mol, const std::string &legend, int width, int height, MolDrawOptions &drawOptions, DrawText &textDrawer, const std::map< int, std::vector< DrawColour > > &highlight_atom_map, const std::map< int, std::vector< DrawColour > > &highlight_bond_map, const std::map< int, double > &highlight_radii, const std::map< int, int > &highlight_linewidth_multipliers, int confId=-1)

 DrawMolMCH (const DrawMol &)=delete

 DrawMolMCH (DrawMol &&)=delete

DrawMolMCH & operator= (const DrawMol &)=delete

DrawMolMCH & operator= (DrawMol &&)=delete

void extractHighlights (double scale) override

virtual void extractMCHighlights ()=0

void getAtomRadius (unsigned int atomIdx, double &xradius, double &yradius) const

- Public Member Functions inherited from RDKit::MolDraw2D_detail::DrawMol
virtual ~DrawMol ()=default

 DrawMol (const ROMol &mol, const std::string &legend, int width, int height, const MolDrawOptions &drawOptions, DrawText &textDrawer, const std::vector< int > *highlightAtoms=nullptr, const std::vector< int > *highlightBonds=nullptr, const std::map< int, DrawColour > *highlightAtomMap=nullptr, const std::map< int, DrawColour > *highlightBondMap=nullptr, const std::vector< std::pair< DrawColour, DrawColour > > *bondColours=nullptr, const std::map< int, double > *highlight_radii=nullptr, bool includeAnnotations=true, int confId=-1, bool isReactionMol=false)

 DrawMol (int width, int height, const MolDrawOptions &drawOptions, DrawText &textDrawer, double xmin, double xmax, double ymin, double ymax, double scale, double fontscale)

 DrawMol (const DrawMol &)=delete

 DrawMol (DrawMol &&)=delete

DrawMol & operator= (const DrawMol &)=delete

DrawMol & operator= (DrawMol &&)=delete

void createDrawObjects ()

void finishCreateDrawObjects ()

void initDrawMolecule (const ROMol &mol)

void extractAll (double scale)

void extractAtomCoords ()

void extractAtomSymbols ()

void extractBonds ()

void extractRegions ()

void extractAttachments ()

void extractMolNotes ()

void extractStereoGroups ()

void extractAtomNotes ()

void extractBondNotes ()

void extractRadicals ()

void extractSGroupData ()

void extractVariableBonds ()

void extractBrackets ()

void extractLinkNodes ()

void extractCloseContacts ()

void resolveAtomSymbolClashes ()

void calculateScale ()

void findExtremes ()

void changeToDrawCoords ()

void draw (MolDraw2D &drawer) const

void drawRadicals (MolDraw2D &drawer) const

void resetEverything ()

void shrinkToFit (bool withPadding=true)

std::pair< std::string, OrientType > getAtomSymbolAndOrientation (const Atom &atom) const

std::string getAtomSymbol (const Atom &atom, OrientType orientation) const

OrientType getAtomOrientation (const Atom &atom) const

void partitionForLegend ()

void extractLegend ()

void calcMeanBondLength ()

void makeStandardBond (Bond *bond, double doubleBondOffset)

void makeQueryBond (Bond *bond, double doubleBondOffset)

void makeDoubleBondLines (Bond *bond, double doubleBondOffset, const std::pair< DrawColour, DrawColour > &cols)

void makeTripleBondLines (Bond *bond, double doubleBondOffset, const std::pair< DrawColour, DrawColour > &cols)

void makeWedgedBond (Bond *bond, const std::pair< DrawColour, DrawColour > &cols)

void makeWavyBond (Bond *bond, double offset, const std::pair< DrawColour, DrawColour > &cols)

void makeDativeBond (Bond *bond, double offset, const std::pair< DrawColour, DrawColour > &cols)

void makeZeroBond (Bond *bond, const std::pair< DrawColour, DrawColour > &cols, const DashPattern &dashPattern)

void adjustBondEndsForLabels (int begAtIdx, int endAtIdx, Point2D &begCds, Point2D &endCds) const

void newBondLine (const Point2D &pt1, const Point2D &pt2, const DrawColour &col1, const DrawColour &col2, int atom1Idx, int atom2Idx, int bondIdx, const DashPattern &dashPattern)

std::pair< DrawColour, DrawColour > getBondColours (Bond *bond)

void makeContinuousHighlights (double scale)

void makeAtomCircleHighlights ()

void makeAtomEllipseHighlights (double lineWidth)

void makeBondHighlightLines (double lineWidth, double scale)

void calcAnnotationPosition (const Atom *atom, DrawAnnotation &annot) const

void calcAnnotationPosition (const Bond *bond, DrawAnnotation &annot) const

double getNoteStartAngle (const Atom *atom) const

int doesNoteClash (const DrawAnnotation &annot) const

int doesRectClash (const StringRect &rect, double padding) const

OrientType calcRadicalRect (const Atom *atom, StringRect &rad_rect) const

void getDrawTransformers (Point2D &trans, Point2D &scale, Point2D &toCentre) const

Point2D getDrawCoords (const Point2D &atCds, const Point2D &trans, const Point2D &scaleFactor, const Point2D &toCentre) const

Point2D getDrawCoords (const Point2D &atCds) const

Point2D getDrawCoords (int atnum) const

Point2D getAtomCoords (const Point2D &screenCds) const

Point2D getAtomCoords (int atnum) const

double getScale () const

double getFontScale () const

void setScale (double newScale, double newFontScale, bool ignoreFontLimits=true)

void setTransformation (const DrawMol &sourceMol)

void setOffsets (double xOffset, double yOffset)

void tagAtomsWithCoords ()

void transformAll (const Point2D *trans=nullptr, Point2D *scale=nullptr, const Point2D *toCentre=nullptr)

Point2D transformPoint (const Point2D &pt, const Point2D *trans=nullptr, Point2D *scale=nullptr, const Point2D *toCentre=nullptr) const

void calcDoubleBondLines (double offset, const Bond &bond, Point2D &l1s, Point2D &l1f, Point2D &l2s, Point2D &l2f) const

void bondInsideRing (const Bond &bond, double offset, Point2D &l2s, Point2D &l2f) const

void bondNonRing (const Bond &bond, double offset, Point2D &l2s, Point2D &l2f) const

void doubleBondTerminal (Atom *at1, Atom *at2, double offset, Point2D &l1s, Point2D &l1f, Point2D &l2s, Point2D &l2f) const

Point2D doubleBondEnd (unsigned int at1, unsigned int at2, unsigned int at3, double offset, bool trunc) const

void calcTripleBondLines (double offset, const Bond &bond, Point2D &l1s, Point2D &l1f, Point2D &l2s, Point2D &l2f)

void findOtherBondVecs (const Atom *atom, const Atom *otherAtom, std::vector< Point2D > &otherBondVecs) const

void adjustBondsOnSolidWedgeEnds ()

void smoothBondJoins ()

void makeHighlightEnd (const Atom *end1, const Atom *end2, double lineWidth, const std::vector< Atom * > &end1HighNbrs, std::vector< Point2D > &points)

DrawColour getColour (int atom_idx) const


Public Attributes

const std::map< int, std::vector< DrawColour > > & mcHighlightAtomMap_

const std::map< int, std::vector< DrawColour > > & mcHighlightBondMap_

const std::map< int, int > & highlightLinewidthMultipliers_

- Public Attributes inherited from RDKit::MolDraw2D_detail::DrawMol
const MolDrawOptions & drawOptions_

DrawText & textDrawer_

double marginPadding_

std::vector< int > highlightAtoms_

std::vector< int > highlightBonds_

std::map< int, DrawColour > highlightAtomMap_

std::map< int, DrawColour > highlightBondMap_

std::vector< std::pair< DrawColour, DrawColour > > bondColours_

std::map< int, double > highlightRadii_

bool includeAnnotations_

bool isReactionMol_

std::string legend_

std::unique_ptr< RWMol > drawMol_

int confId_

std::vector< Point2D > atCds_

std::vector< std::unique_ptr< DrawShape > > bonds_

std::vector< std::unique_ptr< DrawShape > > preShapes_

std::vector< std::unique_ptr< DrawShape > > postShapes_

std::vector< int > atomicNums_

std::vector< std::pair< std::string, OrientType > > atomSyms_

std::vector< std::unique_ptr< AtomSymbol > > atomLabels_

std::vector< std::unique_ptr< DrawShape > > highlights_

std::vector< std::unique_ptr< DrawAnnotation > > annotations_

std::vector< std::unique_ptr< DrawAnnotation > > legends_

std::vector< std::tuple< StringRect, OrientType, int > > radicals_

std::vector< int > singleBondLines_

int width_

int height_

int drawWidth_

int drawHeight_

double scale_

double fontScale_

double xMin_

double yMin_

double xMax_

double yMax_

double xRange_

double yRange_

double xOffset_ = 0.0

double yOffset_ = 0.0

double meanBondLength_ = 0.0

int molHeight_

int legendHeight_ = 0

bool drawingInitialised_ = false

int activeAtmIdxOffset_ = 0

int activeBndIdxOffset_ = 0

bool flexiCanvasX_ = false

bool flexiCanvasY_ = false


Detailed Description

Definition at line 25 of file DrawMolMCH.h.

Constructor & Destructor Documentation

◆ DrawMolMCH() [1/3]

RDKit::MolDraw2D_detail::DrawMolMCH::DrawMolMCH ( const ROMol &  mol,
const std::string &  legend,
int  width,
int  height,
MolDrawOptions &  drawOptions,
DrawText &  textDrawer,
const std::map< int, std::vector< DrawColour > > &  highlight_atom_map,
const std::map< int, std::vector< DrawColour > > &  highlight_bond_map,
const std::map< int, double > &  highlight_radii,
const std::map< int, int > &  highlight_linewidth_multipliers,
int  confId = -1
)

Make a DrawMol that does multi-coloured highlights. Both atoms and bonds can have more than 1 highlight. There's no maximum although more than 4 is very cluttered.

Parameters
mol: the molecule to draw
legend: the legend (to be drawn under the molecule)
width: width (in pixels) of the rendering set this to -1 to have the canvas size set automatically
height: height (in pixels) of the rendering set this to -1 to have the canvas size set automatically
drawOptions: a MolDrawOptions object from the owning MolDraw2D
textDrawer: a DrawText object from the owning MolDraw2D
highlight_atom_map: indexed on atom idx, the colours to be used to highlight atoms. Not all atoms need to be mentioned.
highlight_bond_map: indexed on bond idx, the colours to be used to highlight bonds. Not all bonds need to be mentioned.
highlightRadii: map from atomId -> radius (in molecule coordinates) for the radii of atomic highlights. If not provided for an atom, the default value from drawOptions() will be used.
highlight_linewidth_multipliers: map from bondId -> int, to change the thickness of the lines used for the highlighting.
confId: (optional) conformer ID to be used for atomic coordinates

◆ DrawMolMCH() [2/3]

RDKit::MolDraw2D_detail::DrawMolMCH::DrawMolMCH ( const DrawMol &  )
delete

◆ DrawMolMCH() [3/3]

RDKit::MolDraw2D_detail::DrawMolMCH::DrawMolMCH ( DrawMol &&  )
delete

Member Function Documentation

◆ extractHighlights()

void RDKit::MolDraw2D_detail::DrawMolMCH::extractHighlights ( double  scale)
overridevirtual

Reimplemented from RDKit::MolDraw2D_detail::DrawMol.

Reimplemented in RDKit::MolDraw2D_detail::DrawMolMCHCircleAndLine, and RDKit::MolDraw2D_detail::DrawMolMCHLasso.

◆ extractMCHighlights()

virtual void RDKit::MolDraw2D_detail::DrawMolMCH::extractMCHighlights ( )
pure virtual

Implemented in RDKit::MolDraw2D_detail::DrawMolMCHCircleAndLine, and RDKit::MolDraw2D_detail::DrawMolMCHLasso.

◆ getAtomRadius()

void RDKit::MolDraw2D_detail::DrawMolMCH::getAtomRadius ( unsigned int  atomIdx,
double &  xradius,
double &  yradius
) const

◆ operator=() [1/2]

DrawMolMCH & RDKit::MolDraw2D_detail::DrawMolMCH::operator= ( const DrawMol &  )
delete

◆ operator=() [2/2]

DrawMolMCH & RDKit::MolDraw2D_detail::DrawMolMCH::operator= ( DrawMol &&  )
delete

Member Data Documentation

◆ highlightLinewidthMultipliers_

const std::map<int, int>& RDKit::MolDraw2D_detail::DrawMolMCH::highlightLinewidthMultipliers_

Definition at line 70 of file DrawMolMCH.h.

◆ mcHighlightAtomMap_

const std::map<int, std::vector<DrawColour> >& RDKit::MolDraw2D_detail::DrawMolMCH::mcHighlightAtomMap_

Definition at line 68 of file DrawMolMCH.h.

◆ mcHighlightBondMap_

const std::map<int, std::vector<DrawColour> >& RDKit::MolDraw2D_detail::DrawMolMCH::mcHighlightBondMap_

Definition at line 69 of file DrawMolMCH.h.

The documentation for this class was generated from the following file:
